Xinhai Screening Equipment
Xinhai Screening Equipment

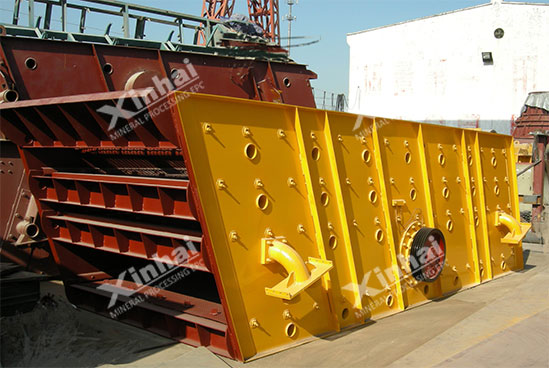

Round Vibrating Screen
Multiple layers, strong exciting force
- Eccentric shaft and eccentric block type vibrator with smooth operation;
- Low-stress damping spring with low noise;
- Large clearance bearings with low operating temperature and long service life;
- Ring groove rivets and block type screen box, strong and durable;
- Equipped with Xinhai wear-resistant screen mesh, avoids the locking of mesh;
【Application】: Material classifying in ore dressing, building, electricity and chemical industry, as well as dewatering, desliming, de-medium.

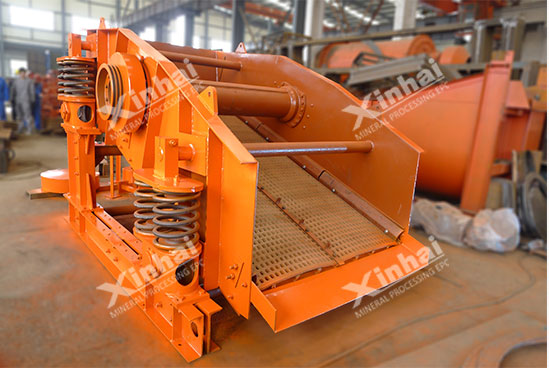

Auto Centering Vibrating Screen
Self-developed equipment with utility patent, high screening efficiency
- Two types of vibrating screen: seat type and hanging type;
- Xinhai wear-resistant screen mesh, whose service life is 3-10 times longer than steel’s, 2 times than PU’s;
- High-elastic and wear-resistant rubber spring, easy to maintain;
- Sieve material has good loose and layering effect;
- The counterweight and amplitude of screen can be adjusted according to production requirement;
【Application】: Almostly used in medium and fine screening in mine, metallurgy, building and chemical fields.

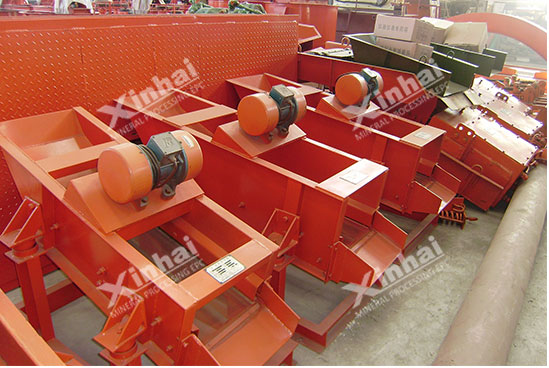

Linear Vibrating Screen
Steady vibration-type, low energy consumption, high screening accuracy
- Using vibrating motor as vibration exciter, low energy consumption, small motor power, only 1/4-1/5 of other screens;
- Adjustable screen angle;
- Transferring the small load to base, do not need special treatment;
- Fully enclosed structure, automatic discharge;
- Steel plate welds the screen body with good rigidity, solid and reliable;
【Application】: Used in fine screening and dense medium removal.
Classic Case

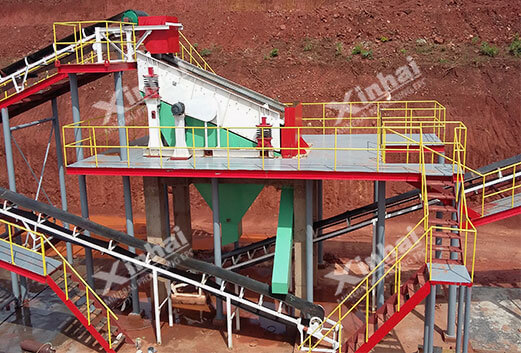

Zimbabwe 700tppd Gold Ore Dressing Project
In 2015, Xinhai undertook Zimbabwe 700tppd gold ore dressing project. In the crushing and screening stage, Xinhai decided to adopt two stage a closed circuit crushing and screening process. The screen process was composed of two round vibrating screens. The specific types were as follows:
| Type | Specification(mm) | Capacity(t/h) | Finished Size(mm) | Screening Efficiency(%) | Notes |
|---|---|---|---|---|---|
| YAH1548 | 30~150 | 200-780 | 20-0 | 94.65% | Prescreening |
| YAH1842 | 30~150 | 450-800 | 20-0 | 90.0% | Check Screening |
| Type | YAH1548 | YAH1842 |
|---|---|---|
| SPEC(mm) | 30~150 | 30~150 |
| Processing Capacity(t/h) | 200-780 | 450-800 |
| Finished Size (mm) | 20-0 | 20-0 |
| Screening Efficiency (%) | 94.65% | 90.0% |
| Notes | Prescreening | Check Screening |
| Practical Results | |
|---|---|
| Efficiency of prescreening: 94.65% | ◆ Increased 10% cruhsher's productivity; ◆ Effectively prevented overcrushing phenomenon; ◆ Reduced equipment wear and consumption. |
| Efficiency of check screening: 90.0% | ◆ Ensured the particle size of final crushing product; ◆ Avoided the impact of unstable particle size; ◆ Saved our customers nearly 5% production cost. |
Certificate
"Innovation Witnesses the Unceasing Development"
-
20 Years of Screening Experience
Xinhai focuses on mine screening over 20 years, who has a deep understanding of screening process. It also has a long-term accumulation of screening experience and customizes the best screening process for every mine.
-
Strong Innovative Power
Xinhai not only obtained European international quality certification, ISO9001:2008 quality management system certification, but also won many national invention patents, which revealed its leading position in the screening field.
-
Considerate Customer Service
Besides its technical power, Xinhai never forget to promote our soft power. From pre-sales to after-sale, Xinhai tries its best to solve customer problems, such as equipment selection, design optimization, technical support.
