Iron Ore Processing Plant

【Process Description】

Iron ore Benefication Process:

1.Large raw iron ore for primary crushing are fed into the jaw crusher by Plate feeder and are reduced to 8 inches or smaller. After first crushing, the material will transferred to cone crusher by belt conveyor for secondary crushing; the crushed iron ore stone will then transferred to vibrating screen for classifying. After classifying, the parts whose size below the mesh size will be transferred away as final products, while the other parts will return to cone crusher, thus forming a closed circuit. Size of final products can be combined and graded according to your specific requirement.

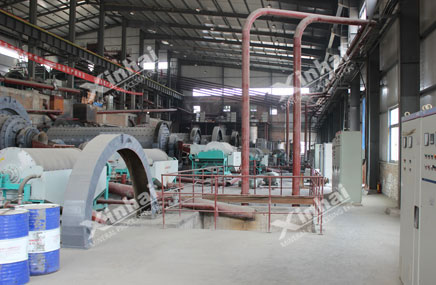

2.The smaller crushed iron ore is fed to ball mill for grinding. Inside the ball mill, the crushed iron ore will grind the ore to about 0.2 mm with 3-inch steel balls.

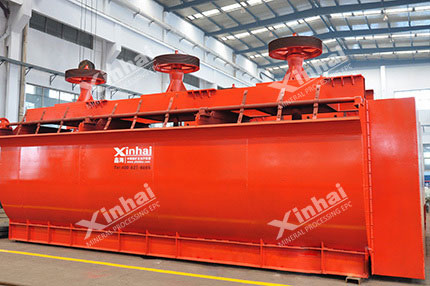

3.This iron ore slurry is pumped to the agitation tank. This iron ore slurry is finally pumped to the flotation machine with the fine sulfide ore (~-0.074 mm) going to froth flotation cells for recovery of iron.

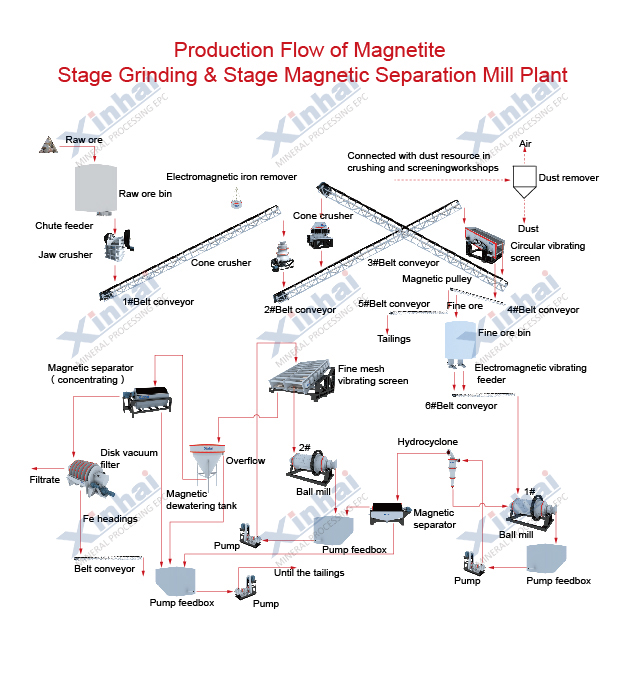

4.In magnetite processing plant,the process of flotation separation is replaced by magnetic separation. The minerals are conveyed to the permanent magnetic dewatering tank for concentrate and then concentrate will enter permanent magnetic drum for a second magnetic separation. The concentrate after filtration and drying are conveyed to warehouse for storage.

Advantages：

1. In crushing, it adopts traditional two-stage and a closed circuit system for ideal fineness. Besides, jaw crushers have large crushing capacity.

2. In grinding and classification, with characteristics of large processing capacity and small floor area, superfine lamination autogenous mill can save energy by more than 85%.

3. In classification, hydrocyclone and vibrating screen can enhance the classifying effects.

4. It adopts the third generation tailings dry stacking technology, which can save energy by 60-80%. Furthermore, it can also protect the environment and build a base for green mine.

Major iron ore beneficiation equipments are including:

Major iron ore beneficiation equipments are including:
jaw crusher, cone crusher, vibrating screen,ball mill,spiral classfier,hydrocyclone,flotation machine, magnetic separatior,efficient thickener,press filter,slurry pump,feeder, agitation tank and belt conveyor etc.

About XINHAI

Xinhai Mining Machinery Company supplies a wide range of solution for mineral process, including gold,silver,copper,iron,zinc,chrome,molybdenum,feldspar, manganese ore and more other ore materials.We could provide advanced mineral processing technique,benefication plant design, equipment production and installation instructions,and also could provide turnkey project!
