Flotation Equipment in Mineral Processing: A Comprehensive Guide

Introduction

The unsung hero of the mining world, mineral processing, turns raw, rugged ores into valuable concentrates that power industries globally. At its core, flotation—a game-changing technique that separates precious minerals like copper, gold, and zinc from the rocky waste surrounding them, known as gangue—lies. So, what makes flotation tick, and why is it so vital? In this article, we're diving into the fascinating world of flotation equipment in mineral processing. From the science behind froth formation to the machinery that make it happen, we'll unpack everything you need to know. Whether you're a mining expert or just curious about how metals get from the earth to your everyday life, this guide has you covered. Flotation isn't just a process—it's a blend of chemistry, physics, and engineering ingenuity. By tweaking the surface properties of minerals, flotation equipment lift valuable particles to the surface while leaving the rest behind. Ready to explore how it all works? Let's get started.

Principles of Flotation: The Science Behind Separation

Picture a crowded dance floor. Some folks can't resist the rhythm—they're the hydrophobic minerals, eager to pair up with air bubble and float to the top. Others clings to the sidelines, drawn to water—these are the hydrophilic gangue materials, content to sink. That's flotation in a nutshell: a clever way to sort minerals based on how they interact with water and air.

Hydrophobic vs. Hydrophilic

Surface chemistry is where the magic starts. Hydrophobic minerals repels water, making them prime candidates to hitch a ride on air bubbles. Hydrophilic minerals, by contrast, cozy ups to water and stay submerged in the slurry—a mix of ground ore and water. By pumping air into this slurry, bubble form and act like tiny elevators, carrying hydrophobic particles upward.

Particle Size Matters

A big role is played by size, too. If mineral particles are too chunky—say, over 100 micrometers—they're too heavy for bubbles to lifts. Too tiny—below 10 micrometers—and they slips through the cracks, missing the bubbles entirely. Most operations grinds ore to a sweet spot of 50-100 micrometers for peak performance.

Froth Formation

Then there's the froth—the foamy layer where the action happens. Frothers, special chemicals we'll explore later, stabilizes these bubbles so they don't pop too soon. The froth become a mineral highway, ferrying valuable particles out of the cell for collection.

Bubble-Particle Connection

Particles and bubbles need to connect for this to work. It's a bit like a blind date—timing and chemistry has to align. Factors like bubble size, particle weight, and surface coatings (thanks to reagents) determines if they stick together long enough to reach the froth.

Flotation Reagents: The Unsung Heroes

If flotation is a recipe, reagents are the spices that brings it to life. Mineral surfaces are tweaked by these chemicals, ensuring the right ones float while others sink. Let's meet the three main players.

Collectors

Matchmakers, collectors are, pairing minerals with bubbles. The surface is coated by them, turning target minerals hydrophobic. For sulfide ores like copper or zinc, xanthates is a go-to choice. They clings to mineral grains, creating a water-repelling shield that bubbles can latch onto.

Frothers

The party is kept going by frothers, whipping up a stable froth. Think of them as the foam on your cappuccino—without them, the bubbles collapses. Pine oil or synthetic alcohols like MIBC (methyl isobutyl carbinol) are popular picks, balancing froth strength so it's just right for mineral recovery.

Modifiers

The process is fine-tuned by modifiers. Need to shift the slurry's pH? To make it alkaline, lime is added, which can suppresses unwanted minerals like pyrite. Want to keep certain particles grounded? Depressants like sodium cyanide steps in, ensuring only the good stuff floats.

Real-World Example

In copper mining, a typical setup uses xanthate to grab copper minerals, MIBC to build a frothy top, and lime to keep iron sulfides at bay. A delicate dance it is, but when done right, it deliver concentrates with over 90% recovery rates.

Flotation Equipment: The Tools of the Trade

Now, let's talk hardware. Flotation equipment create the perfect environment for bubbles and minerals to mingle. Here's a rundown of the key players.

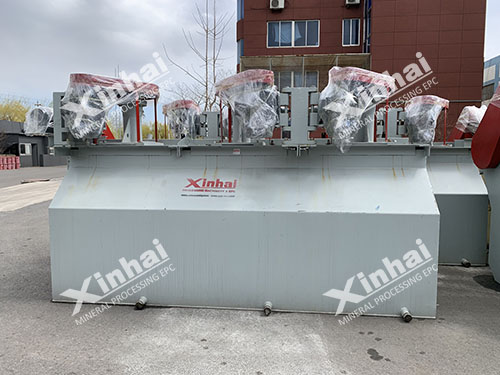

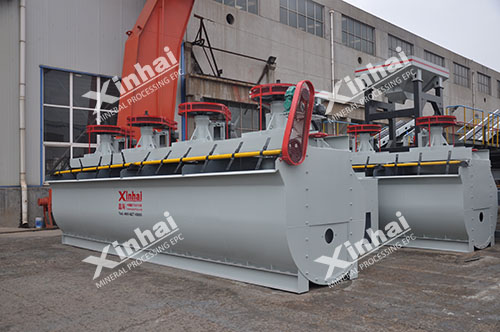

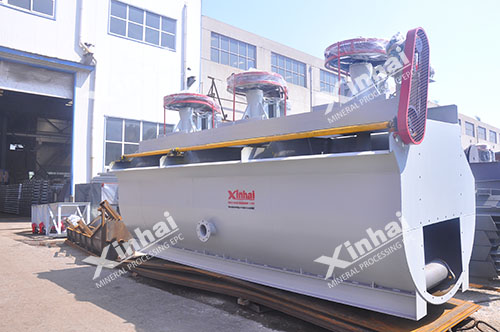

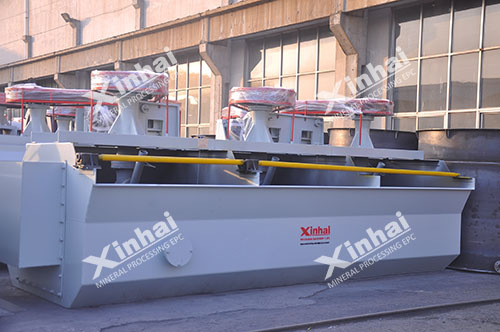

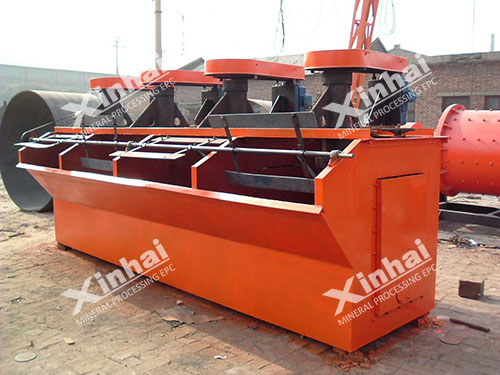

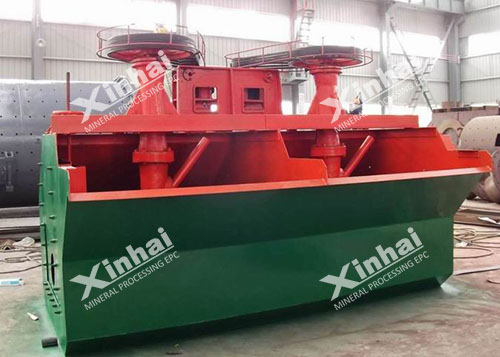

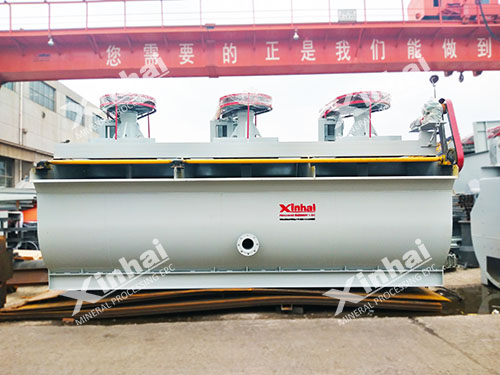

Mechanical Flotation Cells

These workhorses uses spinning impellers to stir the slurry and mix in air. The turbulence keep particles suspended while bubbles rise, grabbing hydrophobic minerals along the way. They're versatile and widely use in rougher circuits—think of them as the all-purpose blenders of flotation.

Pneumatic Cells

Pneumatic cells skips the impeller, instead using compressed air injected through pipes or spargers. They excel at recovering fine particles because they produces smaller, more plentiful bubbles. If precision is your goal, these might be your pick.

Column Flotation Cells

Imagine a tall, sleek tower. Column cells injects air at the base, letting bubbles rise through a deep slurry column. The froth collect at the top, offering high efficiency and cleaner concentrates. They're a favorites in final polishing stages of mineral processing.

Supporting Cast

Beyond cells, you've got agitators to keeps the slurry moving, pumps to shifts froth and tailings, and compressors to supplies air. Each piece ensure the system hums along smoothly, delivering top-notch results.

The Flotation Process: Step by Step

How does it all come together? Here are the journey from raw ore to rich concentrate.

1. Ore Prep: It start with crushing and grinding the ore to free valuable minerals from gangue. Better liberation comes with the finer grind—typically to that 50-100 micrometer range.

2. Conditioning: Here, the slurry party is joined by reagents. Mixers gives them time to bond with mineral surfaces, setting the stage for separation.

3. Flotation: The cell is entered by air, forming bubbles that snatch hydrophobic minerals and lifts them into the froth. Skimmers scoops this froth off the top.

4. Froth Handling: The froth get dewatered and cleaned up, yielding a concentrate ready for smelting. Piped away or reprocessed are tailings—the leftovers—is piped away or reprocessed.

Applications: Where Flotation Shines

Not picky, flotation work across a range of ores and industries.

-Sulfide Ores: In sulfide ores, copper, lead, zinc, and gold-bearing sulfides are flotation staples. For instance, Chile's copper mines relies on it to hit sky-high recovery rates.

- Oxide Ores: Special reagents are needed by hematite or cassiterite in oxide ores, but effectively, they can still be float.

- Industrial Minerals: Coal, phosphates, and potash in industrial minerals get the flotation treatment, too, proving their versatility.

Case Studies

Chile’s Copper Boom: In the Atacama Desert, flotation turn low-grade sulfide ores into concentrates that fuel global markets.

Australian Coal: Down under, coal flotation remove ash and sulfur, producing cleaner fuel for steel production.

Challenges and Advances in Flotation

Not perfect, flotation face hurdles, but innovation keep it moving forward.

Fine and Coarse Particles

Bubbles are dodged by tiny particles, while coarse ones sinks too fast. These extremes is tackled by new tricks like dissolved air flotation and coarse-particle separators (e.g., HydroFloat).

Energy Efficiency

Energy is slurped up by grinding. The power bill is cut by smarter controls and efficient mills is cutting, making flotation greener.

Environmental Impact

Ecosystems can be stressed by reagents and tailings can stresses. The footprint is eased by the shift to biodegradable chemicals and better waste management are easing.

Conclusion

Flotation equipment in mineral processing is a cornerstone of modern mining, pulling valuable minerals from the earth with precision and efficiency. From the chemistry of reagents to the mechanics of cells, i's a field where science meets practical know-how. As challenges like energy use and environmental impact get solved with cutting-edge advances, flotation's future looks brighter than ever. Curious to learn more? Stick around—mining's unsung hero has plenty more stories to tell.
