Efficient Chrome Ore Gravity Processing Plants: Cost-Effective Solutions for Mineral Recovery

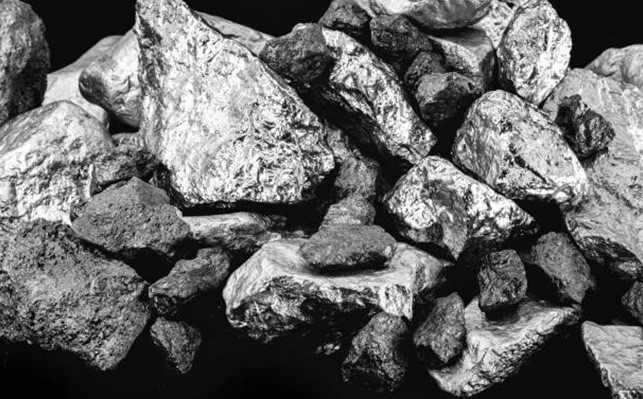

Chromium is a transition metal widely used in various industries, and chrome ore is the main source of chromium. Chrome ore is usually found as dark, lustrous and brittle crystals. Mining and processing of chromite ores involves various beneficiation methods to separate chromite from associated gangue minerals. The recovered chromite is subjected to crushing, grinding and gravity or magnetic separation to produce a chromite-rich concentrate, which can be further processed into ferrochrome alloys or other chrome products.

Gravity separation is a frequently used method in chrome ore beneficiation. Gravity separation is widely used in chrome ore beneficiation due to its simplicity, cost effectiveness and ability to effectively separate chromite from chalcopyrite minerals based on mineral density. In the following section, we will introduce the gravity separation technology of chrome ore.

1. Introduction to gravity separation technology of chrome ore

In the dense medium separation process of chrome ore, crushed chrome ore is mixed with a dense medium, usually a suspension of ferrosilicon or magnetite in water. The density of the medium is intermediate between chromite minerals and gangue minerals. Under the action of gravity, the denser chromite particles sink to the bottom, and the less dense gangue minerals float to the top. This achieves the separation of chromite from gangue minerals.

2. Gravity separation process of chrome ore

The density separation process of chromite ores is a widely used method for processing chromite ore, which uses the difference in density of different minerals to achieve the separation of chromite from gangue minerals. The main steps in the dense media separation process for chrome ore are listed below:

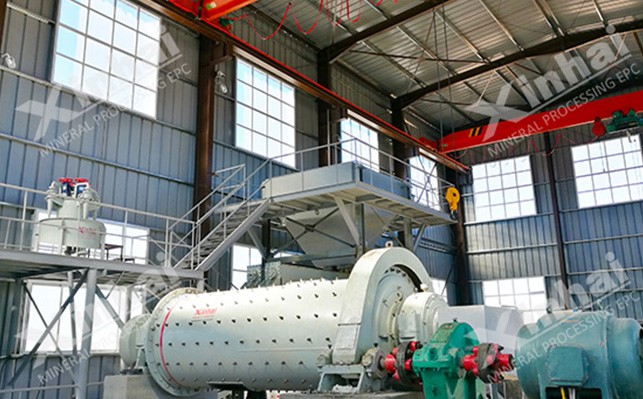

2.1 Ore crushing and pre-treatment: Chrome ore is crushed, ground and screened to obtain particles of the desired size for subsequent processing. Generally, large ores are crushed into smaller particles. Jaw, cone and impact crushers are commonly used for this process. Vibrating screens or

drum screens are then used to classify the crushed ore. Rod mills or for grinding and crushing the ores.

2.2 Dense media preparation: Preparation of dense media, usually using a slurry. Iron silica or magnetite slurries are commonly used in the beneficiation of chrome ores. The density of the media is intermediate between chromite minerals and gangue minerals.

2.3 Density separation: Mixing the crushed chrome ore with dense media. In a dense medium, the denser particles of chromite rock sink to the bottom, while the less dense particles of gangue mineral float to the upper layers of the medium. In this way, the separation of chromite ore from gangue minerals is achieved. Dense media separation cartridges can be used for this process. Dense media separation cartridges are the main component of the dense media separation process. They are a rotating cylindrical tube filled with a suspension of a dense medium such as ferrosilicon or magnetite in water. The crushed chrome ore enters the cylinder, where separation occurs based on the difference in density between the valuable chromite material and the gangue minerals.

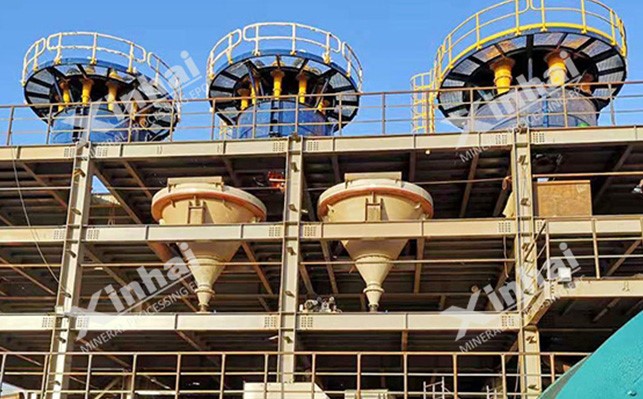

2.4 Density Classification: Further classification of chromite minerals and gangue minerals can be achieved by controlling the concentration and flow rate of the dense media. Particles with different densities settle in different places, which further enhances the separation. This process may involve the use of a hydrocyclone, which is used to separate the dense media from the chromite-rich particles after the particles

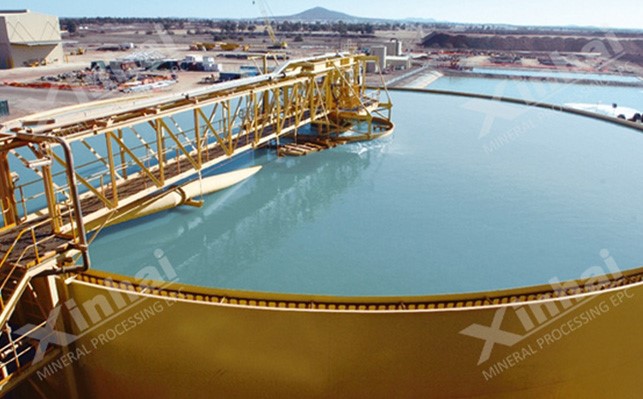

2.5 Concentrate Recovery: In density separation, the denser chromite ore particles settle to the bottom to form a concentrate, while the less dense gangue mineral particles float to the top to form tailings. By collecting and recovering the concentrate, a concentrated product rich in chromite material can be obtained. Settling tanks or thickeners can be used to separate the dense media from the gangue minerals and to concentrate the chromite-rich particles. These settling tanks use gravity settling or sedimentation to separate and collect the desired chromite concentrate.
