Coconut Activated Charcoal
- 【Introduction】:
- 【Features】:
Xinhai coconut activated charcoal is made of imported high quality coconut shell. Xinhai adopts a special activation process by blowing and winnowing. Xinhai coconut activated charcoal has the advantages of uniform particle size, high strength, well-developed porous structure, strong adsorption of precious metal, easy to electrolytic analysis and repeated regeneration. This kind of activated charcoal is widely used in Xinhai CIL process.
Application
Mainly used for CIP, CIL, gold extraction of heap leaching and separation and extraction of precious metal in metallurgical industry.

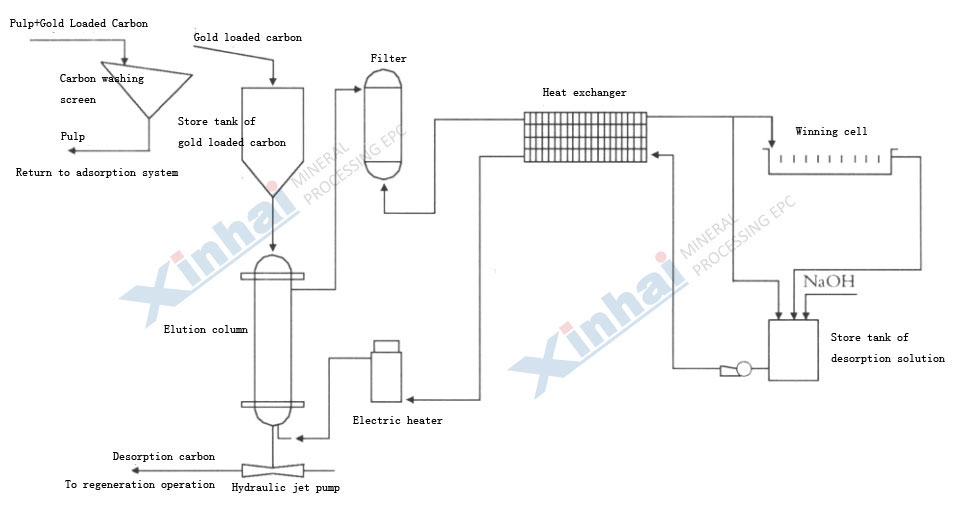

Application Case-----CIP Plant
Coconut activated charcoal adsorbs complexes containing gold in carbon adsorption tank. After the adsorption, the gold loaded carbon enters into desorption electrolysis system under the action of the pump. The carbon enters into the regeneration furnace after analysis, and iodine can generally be restored to more than 95% for reusing.
Technical Parameters
| Items | A Grade | B Grade | |
| Particle size 6-12 mesh | % | ≥98 | ≥95 |
| Abrasive resistance | % | ≥98 | ≥96 |
| Iodine sorption value | mg/g | ≥1000 | ≥900 |
| Loss on drying | % | ≥96 | ≥96 |
| Apparent density | g/ml | 0.45-0.55 | 0.5-0.55 |
