Submerged Spiral Classifier
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Submerged spiral classifier with the spiral of overflow end completely immersed below liquid level is applied in classifying ore with particle size 0.15~0.07mm

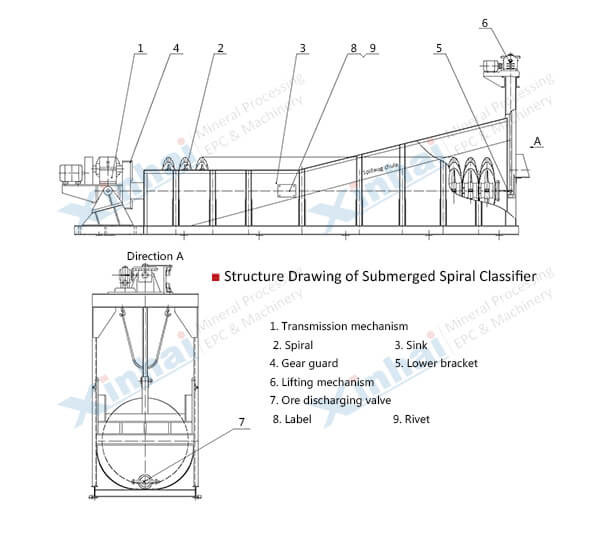

【Product Structure】
Spiral classifier working principle: Fine ore pulps are fed into water tank through feeding opening located in the center of settling zone. Beneath the inclined water tank is the ore pulp classification zone where ore pulps are stirred by low-speeded impellers. Fine ore particles are lifted up and then spilled out the overflow opening; coarse ore particles precipitate down to tank bottom and are discharged via discharge opening.
【Technical Parameters】
| Type | Model | Rotating Speed of Spiral (r/min) | Capacity of Sand Return (t/d) | Capacity of Overflow (t/d) |
Spiral Diameter (mm) |
Spiral Length (mm) |
Slope of Water Tank |
Drive Motor Model |
Drive Motor Power (kW) |
Lifting Motor Model |
Lifting Motor Power (kW) |
Weight (kg) |
| SubmergedSingle Spiral Classifier |
FLC-1000 | 2.5~7.4 | 160~700 | 50-260 | Φ1000 | 8397 | 14 ~18 | Y132M2-6 | 5.5 | Manual driven |
— | 5225 |
| FLC-1200 | 5~7 | 1150~1640 | 120 | Φ1200 | 8400 | Y160M-6 | 7.5 | Y90L-4 | 1.5 | 9583 | ||
| FLC-1500 | 2.5 ~6 | 1140~2740 | 185 | Φ1500 | 10500 | Y100L1-4 | 2.2 | 14226 | ||||
| FLC-2000 | 3.6~5.5 | 3240~5940 | 320 | Φ2000 | 13000 | Y160L-4 | 15 | Y100L2-4 | 3 | 27753 | ||
| FLC-2400 | 3.6 | 6800 | 455 | Φ2400 | 14130 | Y200L1-6 | 18.5 | Y112M-4 | 4 | 32467 | ||
| FLC-3000 | 3.2 | 11650 | 705 | Φ3000 | 14300 | Y200L-4 | 30 | Y112M-4 | 4 | 43500 | ||
| SubmergedDouble SpiralsClassifier |
2FLC -1200 | 3.8 ~6 | 1770~2800 | 240 | Φ1200 | 8040 | Y160M-6 | 7.5X2 | Y100L1-4 | 2.2X2 | 19610 | |
| 2FLC-1500 | 2.5 ~6 | 2280~5480 | 370 | Φ1500 | 10500 | 27450 | ||||||
| 2FLC-2000 | 3.6,5.5 | 7780~11880 | 640 | Φ2000 | 12900 | Y200L2-6, Y200L-4 |
22;30 | Y100L2-4 | 3.0X2 | 50621 | ||
| 2FLC-2400 | 3.67 | 13700 | 910 | Φ2400 | 14130 | Y25S-4 | 37 | Y112M-4 | 4.0X2 | 65283 | ||
| 2FLC-3000 | 3.2 | 23300 | 1410 | Φ3000 | 14300 | Y225M-4 | 45 | Y112M-4 | 4.0X2 | 84900 |
【Successful case】
Tanzania is located in southern Africa and is subordinate savanna climate. The air humidity is bigger, a lot of equipment are eliminated due to the rust. In a gold processing plant in Tanzania, the demand of ore separation is not particularly big, but the ore particle size is much more strict, Xinhai chose the submerged spiral classifier for customer according to the geographical location and customer needs, the hierarchic flooding size is equal or lesser than 0.015 mm, the classification results meets customer demand, recovery rate increase by 11%.
