Walled Belt Conveyor
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Large lifting height Large conveying angle, small area taken, reduce equipment investment and construction cost In vertical layout, full closed setting, good sealing performance, little dust, good environmental protection It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.

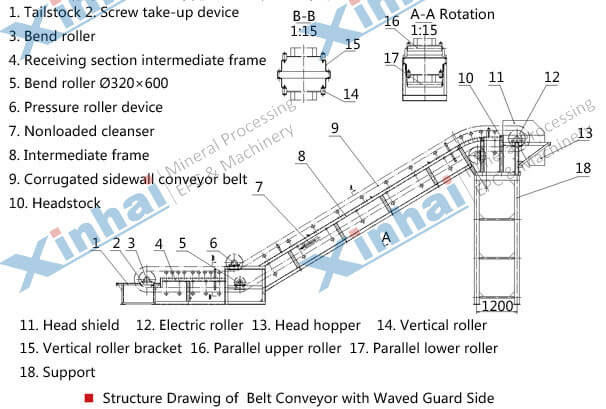

【Product Structure】
Belt conveyor with high inclination angle and waved guard side is bonded with rubber waveform vertical “skirt” with free expansion. The skirt is bonded with transverse diaphragms with a certain intensity and elasticity, which makes the material convey in the bucket.
【Technical Parameters】
| Belt Width (mm) | 500 | 650 | 800 | 1000 | |||||||||
| Guard Side Height (mm) | 80 | 120 | 160 | 80 | 120 | 160 | 120 | 160 | 200 | 160 | 200 | 240 | |
| Dip Angle (R) | 30° | 2.0 | 2.0 | 2.0 | 1.6 | 2.0 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| 100 | 120 | 120 | 100 | 140 | 160 | 140 | 180 | 200 | 180 | 250 | 280 | ||
| 40° | 2.0 | 2.0 | 2.0 | 1.6 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.5 | |
| 100 | 120 | 120 | 100 | 140 | 160 | 140 | 180 | 200 | 180 | 250 | 280 | ||
| 50° | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 2.0 | |
| 80 | 120 | 140 | 80 | 120 | 140 | 120 | 140 | 180 | 140 | 180 | 220 | ||
| 60° | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| 80 | 120 | 140 | 80 | 120 | 140 | 120 | 140 | 180 | 140 | 180 | 220 | ||
| 70° | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| 50 | 60 | 100 | 50 | 60 | 100 | 120 | 100 | 140 | 100 | 140 | 180 | ||
| 90° | 1.0 | 1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| 50 | 60 | 80 | 50 | 60 | 80 | 60 | 80 | 100 | 80 | 100 | 140 | ||
| Belt Width (mm) | 1200 | 1400 | 1600 | ||||||||||
| Guard Side Height (mm) | 160 | 200 | 240 | 300 | 200 | 240 | 300 | 400 | 200 | 240 | 300 | 400 | |
| Dip Angle (R) | 30° | 2.5 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 |
| 160 | 250 | 280 | 310 | 250 | 280 | 350 | 350 | 250 | 280 | 350 | 350 | ||
| 40° | 2.5 | 2.5 | 3.15 | 3.15 | 2.5 | 3.15 | 3.15 | 3.15 | 2.5 | 3.15 | 3.15 | 3.15 | |
| 200 | 250 | 280 | 310 | 250 | 280 | 350 | 350 | 250 | 280 | 350 | 350 | ||
| 50° | 1.6 | 2.0 | 2.5 | 2.5 | 2.0 | 2.5 | 2.5 | 2.5 | 2.0 | 2.5 | 2.5 | 2.5 | |
| 140 | 180 | 220 | 280 | 180 | 220 | 280 | 320 | 180 | 220 | 280 | 320 | ||
| 60° | 1.6 | 1.6 | 1.6 | 2.0 | 1.6 | 1.6 | 2.0 | 2.0 | 1.6 | 1.6 | 2.0 | 2.0 | |
| 140 | 180 | 220 | 280 | 180 | 220 | 280 | 320 | 180 | 220 | 280 | 320 | ||
| 70° | 1.6 | 1.6 | 1.6 | 2.0 | 1.6 | 1.6 | 2.0 | 2.0 | 1.6 | 1.6 | 2.0 | 2.0 | |
| 100 | 140 | 180 | 200 | 140 | 180 | 200 | 250 | 140 | 180 | 200 | 250 | ||
| 90° | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| 80 | 100 | 140 | 160 | 100 | 140 | 160 | 200 | 100 | 140 | 160 | 200 | ||
【Successful case】
A concentrator in Shandong is located in low-lying regions, a large number of iron ore need to be transported to 50m outside, so the customer selected Xinhai belt conveyor with high inclination angle and waved guard side, therefore, Xinhai specially increased lubricant for feeder, deepened the guard device, ensuring that the transmission angle of belt conveyor can be adjusted flexibly, and no ore falling. Customer said there is no blocking chain, floating chain and broken chain in operation.
