Vacuum Filter
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Large filtering area, large capacity.
Full dehydration.
Markedtechnical and economic effect.
Small area taken, easy to manufacture and strong adsorption ability.
【Product Structure】

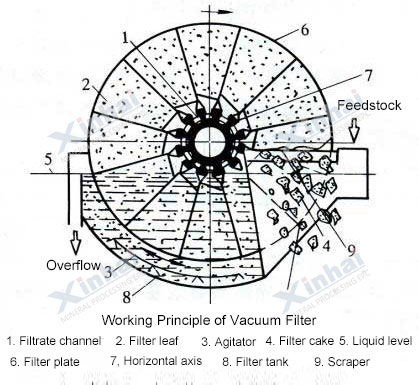

Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate. Filter cake comes out from slime hopper receiving spray washing. Filter cake falls into the tank by the pressure from the wind and scraper. It can be used for floating and dewatering in clean coal and fine materials like tailings, and it can be also used in metallurgy, chemical, petroleum, sewage treatment, and other aspects of the solid-liquid separation.
【Technical Parameters】
| Model | PG18-4 | PG27-6 | PG39-4 | PG58-6 | PG78-8 | PG97-10 | PG116-12 | |
| Filter Area (m2) | 18 | 27 | 39 | 58 | 78 | 97 | 116 | |
| Quantity of Filter Disc | 4 | 6 | 4 | 6 | 8 | 10 | 12 | |
| Diameter of Filter Disc (mm) | 1800 | 1800 | 2700 | 2700 | 2700 | 2700 | 2700 | |
| Rotating Speed of Filter Disc (r/min) | 1 | 0.135 ~0.607 | 0.135 ~0.607 | 0.135 ~0.607 | 0.15~0.67 | 0.15~0.67 | 0.148~0.66 | 0.148~0.66 |
| 2 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.285~1.285 | 0.285~1.285 | |
| 3 | 0.44~1.98 | 0.44~1.98 | ||||||
| Rotating Speed of Agitator (r/min) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Main Drive Motor | Model | YCTL132-4B | YCTL132-4B | YCT160-4A | YCT160-4B | YCT160-4B | YCTL180-4A | YCTL180-4A |
| Power (kW) | 1.5 | 1.5 | 2.2 | 3 | 3 | 4 | 4 | |
| Rotating Speed (r/min) |
1230~125 | 1230~125 | 1250~125 | 1250~125 | 1250~125 | 1250~125 | 1250~125 | |
| Drive Motor of Agitator | Model | Y90L-4 | Y90L-4 | Y90L-4 | Y100L1-4 | Y100L1-4 | Y112M-4 | Y112M-4 |
| Power (kW) | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | |
| Rotating Speed (r/min) |
1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | |
| Vacuum Pump | Model | SZ-4 | 2YK-27 | SZ-4 | SZ-4 | SZ-4 | 2YK-110 | 2YK-110 |
| Quantity | 1 | 1 | 1 | 2 | 2 | 1 | 1 | |
| Blower | Model | SZ-2 | SZ-2 | SZ-2 | SZ-3 | SZ-3 | SZ-3 | SZ-3 |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Weight (kg) | 3500 | 4500 | 6000 | 8000 | 9000 | 10000 | 12000 | |
| Overall Dimensions: (LXWX H) (mm) | 2820X2355 X2295 |
3820X2355 X2295 |
3015X3275 X3275 |
3930X3355 X3275 |
4730X3355 X3275 |
5530X3355 X3275 |
6330X3355 X3275 |
|
【Successful case】
A concentration in Sudan selected a filter with high water filtrate, low screening rate, large energy consumption, and poorer filtering effect. In the process of reconstruction, the customer chose Xinhai vacuum filter that solved these problems, Xinhai also specially added polypropylene plastic internally, increasing the corrosion resistance, each indicator is improved more 17.21% than before, customers are very satisfied with it.
