XCF air inflation flotation cell
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Strong agitation force; simple structure
Air spreading well; uniform mixing of slurry and air
Less sedimentary of tailings and
Low turnaround speed and low power consumption
It can be combined with model KYF as a flotation cell set, working as suction cell.
【Product Structure】

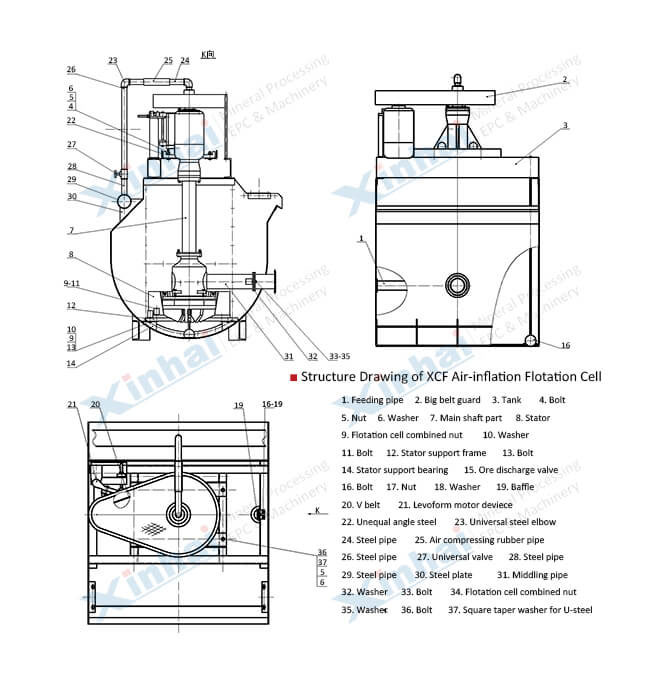

XCF air inflation floatation cell structure as shown in the diagram, is composed of tank, large isolation plate impeller with top and bottom blades, seat stator radial blade, split disc cover, split center tube, connecting tube with air-bleed hole, bearing body, hollow main shaft and the air adjustable valve. Deep groove body with open and closed two structures; the bearing body with seat and hanging type XCF air inflation floatation cell is applied in roughing and scavenging of large and middle scale dressing plant aiming to non-ferrous metal, ferrous metal and nonmetal minerals.
【Technical Parameters】
| Model | Effective Volume (m3) |
Capacity (m3/min) |
Impeller Diameter (mm) |
Impeller Revolution (r/min) |
Air Pressure of Blower (kPa) | Max. Air Inflation Volume (m3/m2.min) |
Motor Power for Agitation (kW) |
Motor Power for Scraper (kW) |
Weight (kg) |
| XCF-1 | 1 | 0.2 ~1 | 400 | 358 | ≥ 12.6 | 2 | 5.5 | 0.75 | 1154 |
| XCF-2 | 2 | 0.4 ~2 | 470 | 305 | ≥ 14.7 | 2 | 7.5 | 1.1 | 1659 |
| XCF-3 | 3 | 0.6 ~3 | 540 | 266 | ≥ 19.8 | 2 | 11 | 1.5 | 2259 |
| XCF-4 | 4 | 1.2 ~4 | 620 | 225 | ≥ 19.8 | 2 | 15 | 1.5 | 2669 |
| XCF-8 | 8 | 3.0 ~8 | 720 | 175 | ≥ 21.6 | 2 | 22 | 1.5 | 3868 |
| XCF-10 | 10 | 4~10 | 720 | 192 | ≥ 21.6 | 2 | 30 | 1.5 | 4800 |
| XCF-16 | 16 | 4~16 | 860 | 160 | ≥ 25.5 | 2 | 37 | 1.5 | 6520 |
| XCF-24 | 24 | 4~24 | 950 | 153 | ≥ 30.4 | 2 | 37 | 1.5 | 8000 |
| XCF-38 | 38 | 10 ~38 | 1050 | 136 | ≥ 34.3 | 2 | 55 | 1.5 | 11000 |
【Successful case】
A flotation plant in Shandong has a smaller scale, and the budget is limited, so the client hope to purchase a cost-effective flotation equipment. Xinhai recommended XCF air inflation flotation method according to the customer specific circumstances. The biggest advantage of XCF air inflation flotation cell is it occupied small area, and its simple structure, which are convenient to maintain. Because the air spread evenly, and pulp combination is increased greatly, making pulp material mix evenly, the separation efficiency increased by 30%. The desired purpose is completely achieved after put into operation, saved the occupied area, and maintenance cost is low, which guarantee control cost. Finally, the customer highly praised this result.
