Home Product Iron Removal Equipment Electromagnetic Iron Remover
Electromagnetic Iron Remover
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Large magnetic penetration depth Strong magnetically attractive force Resistance todust, rain and corrosion
【Product Structure】

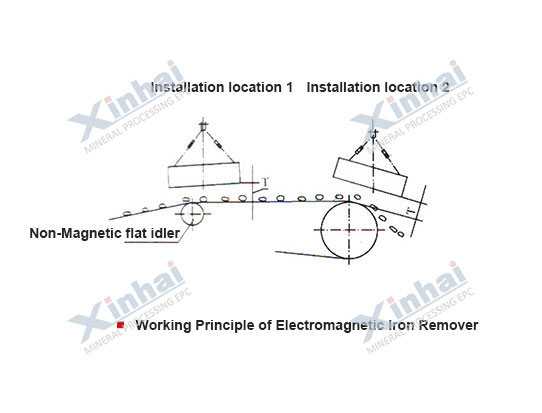

After power on, strong magnetic force picks up the iron parts mixed in materials, and then the iron parts are thrown out by unloading iron belt. This can effectively prevent the belt from longitudinal laceration, and guarantees the normal working of crushing, grinding machine etc.. It is usually installed in the head or middle of belt conveyor.
【Technical Parameters】
| Model | Cooling Pattern | Belt Width (mm) | Excitation Power (kW) |
Hanging Height (mm) | Thickness of Materials (mm) | Belt Speed (m/s) | Weight (kg) |
| RCDA-5 | Forced Air Cooling | 500 | 1 | 150 | ≤ 100 | ≤ 2.5 | 450 |
| RCDA-6 | 600 | 1.6 | 175 | ≤ 150 | 620 | ||
| RCDA-8 | 800 | 2 | 250 | ≤ 200 | 960 | ||
| RCDB-5 | Natural Air Cooling | 500 | 1 | 150 | ≤ 110 | 400 | |
| RCDB-6 | 600 | 1.6 | 175 | ≤ 140 | 600 | ||
| RCDB-8 | 800 | 3 | 250 | ≤ 200 | 950 | ||
| RCDC-5 | Forced Air Cooling and Automatic Unloading Iron | 500 | 1.2 | 150 | ≤ 100 | 1100 | |
| RCDC-6 | 600 | 2.0 | 175 | ≤ 150 | 1300 | ||
| RCDC-8 | 800 | 3.5 | 250 | ≤ 200 | 2200 | ||
| RCDD-5 | Natural Air Cooling and Automatic Unloading | 500 | 1 | 150 | ≤ 110 | 1000 | |
| RCDD-6 | 600 | 1.8 | 175 | ≤ 140 | 1350 | ||
| RCDD-8 | 800 | 3 | 250 | ≤ 200 | 1600 |
【Successful case】
A graphite processing plant in Sudan often encounters sandstorm weather, the environment condition is relatively bad, so the client wants to purchase Xinhai electromagnetic iron remover with reasonable prices relatively. Considering the plant situation, Xinhai recommended RCDB electromagnetic iron remover, in the practical application, it has large permeability and strong suction, which can resist wind erosion, has good abrasion resistance and long service life, reduce the cost, getting remarkable effect in the application.
