Home Product Thickening Efficient Thickener
Efficient Thickener
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Adding the flocculants to increased sedimentation particle size, thus speeding up the sedimentation velocity.
Adding the degassing tank to prevent solid particles attached to the bubbles.
Setting material receiving plate and cylinder moving down, the feeding evenly and steadily falling, effectively prevent the occurrence of the splashing.
Unit processing capacity is improved by 4 ~ 9 times,and energy saving 30%.

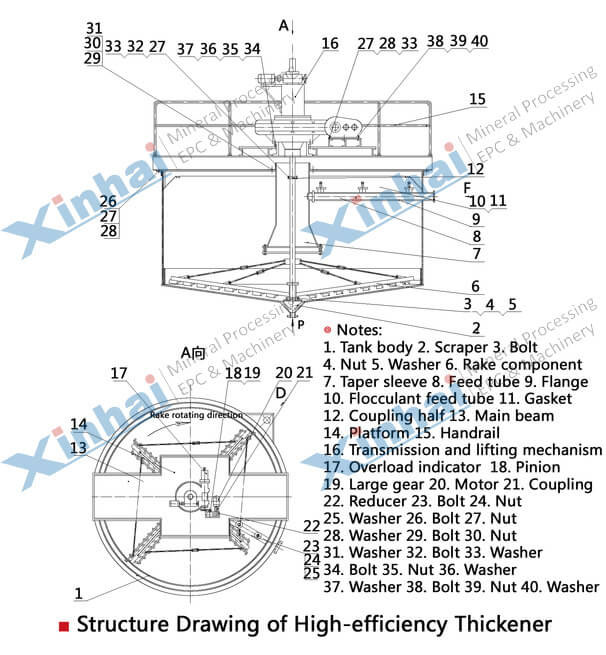

【Product Structure】
This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
【Technical Parameters】
| Model | Inner Diameter of Tank (mm) | Tank Height (mm) |
Subsidence Area (m2) | Rabble Rotating Speed (r/min) |
Lifting Height of the Rabble (mm) | Driving Motor Model |
Driving Motor Power (kW) |
Lifting Motor Model |
Lifting Motor Power (kW) |
Steel Tank Weight (kg) | Weight (kg) |
| GX-3.6 | 3600 | 1700 | 10.2 | 1.1 | 200 | Y100L-6 | 1.5 | Y100L-6 | 1.5 | 2829 | 6650 |
| GX-5.18 | 5182 | 2134 | 21 | 0.4 | 300 | Y132S-6 | 3 | PZ0.8AB | 0.8 | 5342 | 10460 |
| GX-6 | 6000 | 2500 | 28.3 | 0.8 | 300 | Y132M1-6 | 4 | Y132S-8 | 2.2 | 6506 | 10573 |
| GX-7.5 | 7500 | 2800 | 44.1 | 0.427 | 300 | Y132M2-6 | 5.5 | Y132S-8 | 2.2 | 10258 | 17320 |
| GX-9 | 9000 | 2800 | 63.6 | 0.427 | 300 | Y132M2-6 | 5.5 | Y132S-8 | 2.2 | 15980 | 23680 |
| GX-12 | 12000 | 3600 | 110 | 0.35 | 300 | Y132M-4 | 7.5 | Y100L1-4 | 2.2 | 25589 | 42756 |
| GX-15 | 15000 | 4000 | 177 | 0.15 | 300 | YCT200-4B | 7.5 | Y112M-6 | 2.2 | 36050 | 59000 |
| GX-18 | 18000 | 4400 | 254 | 0.13 | 400 | YCT200-4B | 7.5 | YTC752A-44 | 5.5 | 52485 | 73296 |
| GX-20 | 20000 | 4400 | 314 | 0.13 | 400 | YCT200-4B | 7.5 | YTC752A-44 | 5.5 | 59365 | 76020 |
【Successful case】
In the thickening process of a mineral plant, the agent system needs to add additionally, which increased the cost and increase consumption. Xinhai efficient thickener can supply agent affixation system, such as flocculating agent, the facilities supporting is more obvious. Besides, new mechanical structure increases the flocculation of solid particles, not only guarantee convenience and efficiency, but also control the cost in a certain extent.
