Cutting-Edge Lithium Processing: Advanced Techniques for Beneficiation and Refining

Lithium processing is a critical process in the manufacturing of high-purity lithium compounds used in lithium-ion batteries, electronic devices, and energy storage systems. New techniques in beneficiation and refining are enhancing efficiency, reducing cost, and reducing environmental impact as technology advances. This guide provides a technical overview of present lithium extraction, beneficiation, and refining processes with focus on best practice and equipment needed for each process.

Lithium Ore Beneficiation: Optimization of Recovery and Efficiency

Spodumene-type hard rock lithium deposits require precise processes of beneficiation to recover lithium with high efficiency and low impurities. The key processes of lithium ore beneficiation are:

Crushing and Screening: Crushing is done on the ore first by jaw crushers and cone crushers. Screening machines ensure uniform particle distribution, and magnetic separation, thus preparing the material for further processing.

Grinding and Classification: Ore is crushed and wet ground in ball or rod mills to achieve optimum particle size for effective flotation. Hydrocyclones or vibrating screens are utilized for classification of ground product.

Flotation Process: Spodumene flotation depends on the introduction of collectors, frothers, and depressants to float lithium-bearing minerals from gangue by selective separation. High-capacity flotation machines provide maximum recovery of lithium with minimal reagent use.

Concentrate Dewatering: The lithium concentrate is filtered and thickened following flotation in order to reduce moisture content, facilitating easier downstream refining and transport.

Lithium Extraction Technologies: Maximizing Yield and Purity

Lithium can be recovered from spodumene concentrates or brine deposits via specialized techniques:

Thermal Conversion of Hard Rock Lithium: Spodumene concentrate is heated to high temperatures (900-1100°C) to convert α-spodumene into a more reactive β-spodumene phase. The operation enhances the efficiency of the subsequent acid or alkaline leaching.

Acid Leaching and Refining: β-spodumene is subjected to controlled-temperature sulfuric acid treatment to extract lithium. The extracted solution is neutralized and cleaned to obtain battery-grade quality.

Brine Lithium Processing: Brine lithium is processed using evaporation ponds or Direct Lithium Extraction (DLE) technologies involving ion exchange, solvent extraction, or membrane filtration to achieve higher efficiency and water savings.

Lithium Refining: High-Purity Battery-Grade Lithium

Refining of lithium is required to supply high-purity lithium carbonate or lithium hydroxide used in batteries. Key refining techniques are:

Precipitation and Conversion: Lithium carbonate is precipitated from pure solutions by controlled crystallization. Lithium carbonate is converted to lithium hydroxide by reaction with calcium hydroxide in a controlled atmosphere for use.

Electrochemical Refining: Enhanced electrochemical processes improve lithium purity with less reagent use and energy.

Crystallization and Drying: Ultimate purification is achieved through multi-stage crystallization and drying to achieve battery-grade lithium specifications.

Advanced Equipment for Lithium Processing

Lithium processing must be maximized utilizing high-efficiency, advanced processing equipment. Key among the top technologies are:

Jaw and Cone Crushers: Enhance efficient primary and secondary crushing.

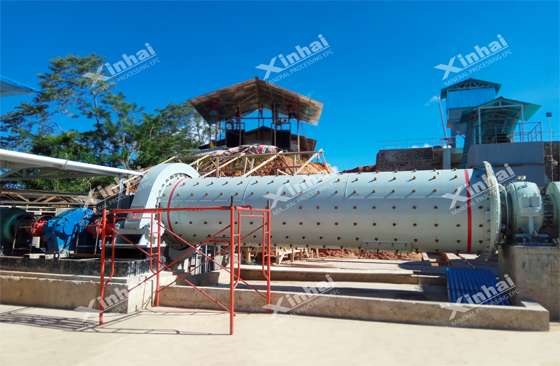

Energy-Saving Ball Mills: Optimize grinding efficiency while minimizing energy costs.

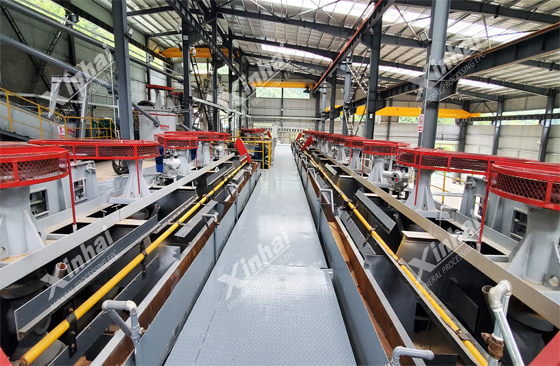

High-Efficiency Flotation Cells: Optimize lithium recovery with cost-effective reagent consumption.

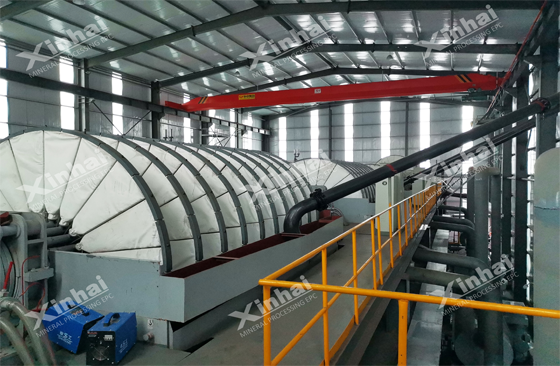

Thickeners and Vacuum Filters: Improve concentrate dewatering and refining efficiency.

The Future of Lithium Processing Technologies

With rising demand for lithium, advancing technology in the field of beneficiation, extraction, and refining will become important for optimizing production as well as being sustainable. Efforts of increasing efficiency, reducing damage to the environment, and fulfilling the rising requirement of high-purity lithium can be met by implementing the latest equipment and processing technology used by lithium manufacturers.

Remaining competitive with the latest in lithium processing innovation guarantees success in the dynamic energy and battery market, where technological development is vital for long-term viability.
