Home Product Agitation Equipment Agitation Tank
Agitation Tank
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
The cylinder is lined with Xinhai wear-resistant rubber with strong resistance to wear and corrosion Strong agitation capability Stable operation, convenient maintenance Energy saving

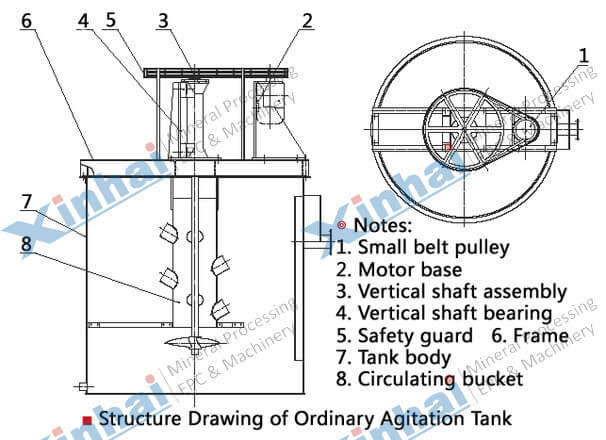

【Product Structure】
Agitation tank is mainly applied in slurry stirring before floatation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.
【Technical Parameters】
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
| BJ-500X500 | 0.0785 | 493 | 160 | Y80L-4 | 0.55 | 120 |
| BJ-750X750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 240 |
| BJ-1000X1000 | 0.58 | 530 | 310 | Y100L-6 | 1.5 | 680 |
| BJ-1500X1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 790 |
| BJ-1600X1800 | 2.6 | 331 | 400 | Y132M2-6 | 5.5 | 990 |
| BJ-2000X2000 | 4.4 | 230 | 550 | Y132M2-6 | 5.5 | 1800 |
| BJ-2000X2500 | 5.9 | 230 | 630 | Y160M-6 | 7.5 | 2106 |
| BJ-2500X2500 | 11.2 | 230 | 630 | Y160M-6 | 7.5 | 2766 |
| BJ-3000X3000 | 19.1 | 210 | 700 | Y225S-8 | 18.5 | 4613 |
| BJ-3500X3500 | 24 | 230 | 850 | Y225M-8 | 22 | 5980 |
| BJ-4000 X 4000 | 45 | 153 | 1000 | Y250M-8 | 30 | 8910 |
【Successful case】
The iron ore dressing plant in Shanxi has a high ore hardness, the industrial agitator wear is large in the mixing process before flotation, and the equipment replacement is frequent, which increase a lot of cost. The plant has been struggling to find a good wear-resisting agitation machinery equipment. After consultation, the client purchased Xinhai agitation tank. The cylinder of Xinhai agitation tank is lining with wear-resisting rubber, greatly extending its service life, and saved the cost for the plant. Nowadays, Xinhai agitation tank has been operating in the plant's production line for last five years and it is still applied to production line.
