Agitation Tank for Chemical Reagent
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Excellent wear-resistance, long service life
Strong agitation capability

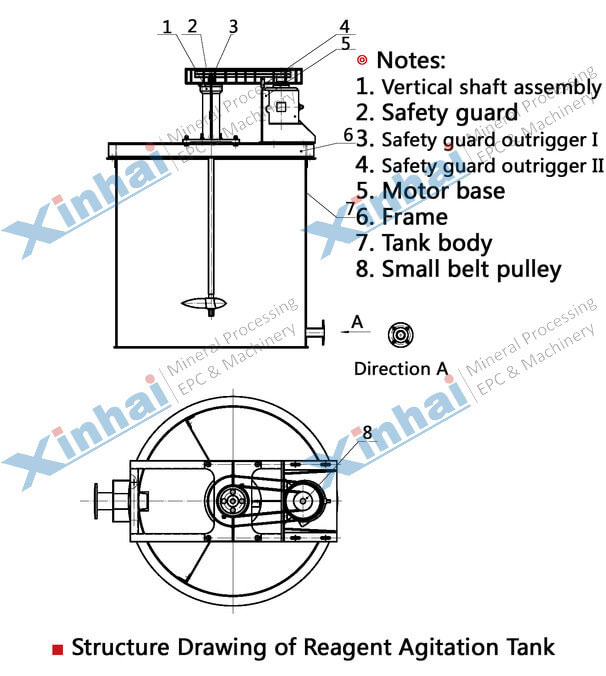

【Product Structure】
Agitation tank for chemical reagent for chemical reagent adopts barrel shaped radiation circular spiral impeller for mixing operation by mechanical stirring method. The motor drives V- belt transmission device which drives the impeller. Reagents mix evenly under the rotation of impeller preparing for next step that mix the ore slurry and reagents. Agitation tank for chemical reagent is used for reagents preparation before floatation.
【Technical Parameters】
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
| BJW-500X600 | 0.094 | 493 | 200 | Y80L-4 | 0.55 | 120 |
| BJW-750X750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 230 |
| BJW-750X1000 | 0.35 | 530 | 240 | Y100L-6 | 1.5 | 270 |
| BJW-1000X1000 | 0.58 | 530 | 240 | Y100L-6 | 1.5 | 420 |
| BJW-1250X1250 | 1.15 | 492 | 310 | Y100L1-4 | 2.2 | 490 |
| BJW-1500X1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 1310 |
| BJW-2000X2000 | 5.46 | 230 | 550 | Y132M2-6 | 5.5 | 1720 |
| BJW-3000X3000 | 14.8 | 210 | 700 | Y225S-8 | 18.5 | 4613 |
【Successful case】
In a large chemical plant in Henan, the corrosion resistance is strong, and the percent abandoned of agitation tank is high, after contrast among several companies, the client chose Xinhai agitation tank for chemical reagent. This agitation tank adopts push type spiral impeller, the speed is uniform, which makes the material mixing more even, and the cylinder is lining with Xinhai wear-resisting rubber, and also packs resistant anticorrosive rubber on the impeller, which has effective corrosive substance against corrosive agents, prolong the service life of equipment, and overcome the problems of the plant always meet.
