Electromagnetic Vibrating Feeder
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost.
Adoption the principle of the mechanical vibration, and less energy consumption.
Change the volume of flow at any time.
Centralized control and automatic control of production process.
Small wear of feeding tank.
The feeding tank made of alloy-steel plate could convey heat and corrosive materials.

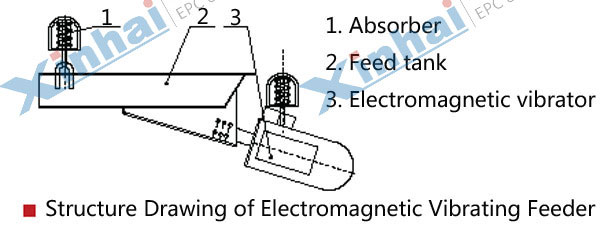

【Product Structure】
The electromagnetic vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.
【Technical Parameters】
| Model | Tank Dimension (LXWXH) (mm) | Feed Size (mm) | Horizontal Feed Amount (t/h) | Feed Amount (t/h) | Power (kW) |
Overall Dimension (LXWXH) (mm) | Weight (kg) |
| GZ1 | 600X200X100 | 50 | 5 | 7 | 0.06 | 910X376X485 | 80 |
| GZ2 | 800X300X120 | 10 | 14 | 0.15 | 1175X608X600 | 165.5 | |
| GZ3 | 900X400X150 | 75 | 25 | 35 | 0.2 | 1325X578X675 | 223 |
| GZ4 | 1100X500X200 | 100 | 50 | 70 | 0.45 | 1616X762X814 | 462 |
| GZ5 | 1200X700X250 | 150 | 100 | 140 | 0.65 | 1815X840X980 | 656 |
| GZ6 | 1600X900X250 | 200 | 150 | 210 | 1.5 | 2410X10925X1500 | 1252 |
| GZ7 | 1800X1100X250 | 250 | 250 | 350 | 3 | 2800X1330X1710 | 2017 |
| GZ8 | 2200X1300X300 | 300 | 400 | 560 | 4 | 3302X1556X1995 | 3153 |
| GZ9 | 2400X1500X300 | 350 | 600 | 840 | 5.5 | 3515X1776X2200 | 3750 |
| GZ10 | 2500X1800X375 | 500 | 750 | 1050 | 4X2 | 3630X2500X2235 | 6491 |
| GZ11 | 2800X2000X375 | 1000 | 1400 | 5.5X2 | 4060X2640X2919 | 7680 | |
| GZ12 | 3000X2200X400 | 1200 | 1500 | 15 | 5260X2860X2563 | 8840 | |
| GZ13 | 3200X2500X450 | 1300 | 1600 | 6394X3040X2864 | 9920 | ||
| GZ14 | 3500X2500X450 | 550 | 1500 | 1700 | 18.5 | 7475X3802X3000 | 11000 |
【Successful case】
A copper processing plant in Henan consulted a feeder that is easy to maintain and save land. According to the customer requirements, Xinhai recommended electromagnetic vibrating feeder with e-machine in one. The structure of electromagnetic vibrating feeder is simple relatively, and covers small area, east to install and maintain. In the using process, customer can adjust feeding coal easily, realizing the centralized control and automatic control of production process, achieving the anticipated effect.
