Home Product Gold Extraction Equipment Carbon Screen
Carbon Screen
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
No moving parts; the screen holes are not easy to block; simple structure; convenient operation and maintenance; low cost; long service life.
The screen separates activated carbons from mineral pulps. As a result, mineral pulps flow to next leaching tank, while activated carbons remain in the current leaching tank.

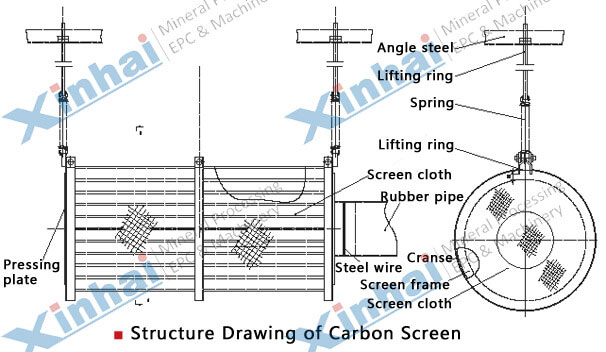

【Product Structure】
Carbon Screen is used to separate activated carbon with ore pulp, which let pulp flow to the next leaching tank, while the carbon stay in the first tank.
【Technical Parameters】
| Model | Frame diameter (mm) | Frame length (mm) | Screen hole specification (mesh) | Weight (kg) |
| SY100 | 100 | 1000 | 28 | 10 |
| SY125 | 125 | 1000 | 28 | 13 |
| SY200 | 150 | 1000 | 28 | 14 |
| SY250 | 200 | 1000 | 28 | 16 |
| SY300 | 300 | 1000 | 32 | 24 |
| SY500 | 500 | 1000 | 32 | 35 |
【Successful case】
The gold processing project in Sudan, carbon screen makes an isolation effect on pulp flow in the leaching tank and activated carbon adsorption of gold, preventing the mixing of activated carbon and pulp, increasing extra work, at the same time, the material is solid and durable, the effect of field work is very reliable.
