Chrome Ore Beneficiation Process: Unlocking the Secrets of Efficient Chrome Recovery

Chrome plays an important role in many industries, and its extraction and processing are very important for modern applications. The chrome recovery process includes several key steps: crushing, recovery, melting, etc.

Crushing and grinding of chrome during beneficiation

The first step in the chrome beneficiation process is grinding, which involves crushing and grinding chrome to release the valuable mineral. The choice of equipment depends on the characteristics of the ore:

For chrome block ores: jaw crusher, cone crusher, ball or rod mill is used to reduce particle size.

Chromite sands: Since fine particles are naturally released, simple washing and desliming techniques can be used.

Gravity separation: the basis of chrome ore processing

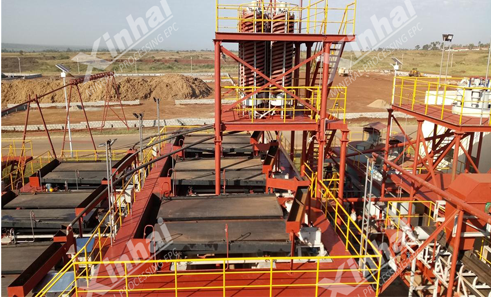

Gravity separation is a basic method of chromium ore processing. This process utilizes the density difference between chromite and gangue minerals to achieve effective separation. Commonly used equipment are spiral separator, shaker and jig.

The spiral separator uses centrifugal force to separate the heavier chromite particles from the lighter impurities. The shaker combines gravity and lateral motion to sort the particles according to their density. These methods are particularly effective for coarse-grained and medium-grained chromite, making gravity separation a cost-effective and environmentally friendly option.

Magnetic separation: a dual purpose solution

Magnetic separation technology has dual functions. First, low-intensity magnetic separation can effectively remove magnetite from chromite, which is a highly magnetic mineral. This step is crucial to improving the ferrochrome ratio, which is a key indicator of chromium quality.

Secondly, high intensity magnetic separation is mainly used to recover fine chromite. Although these particles are less magnetic, they can still be successfully attracted and separated by strong magnetic fields. This method is especially suitable for ores with complex mineral composition.

To optimize efficiency, magnetic separation is often combined with gravity separation. This combination makes full use of the advantages of the two technologies and greatly improves the recovery rate of chromite. Gravity separation is suitable for coarse particle beneficiation, and magnetic separation focuses on fine particle beneficiation, achieving comprehensive and efficient recovery.

Flotation and chemical beneficiation: precision processing

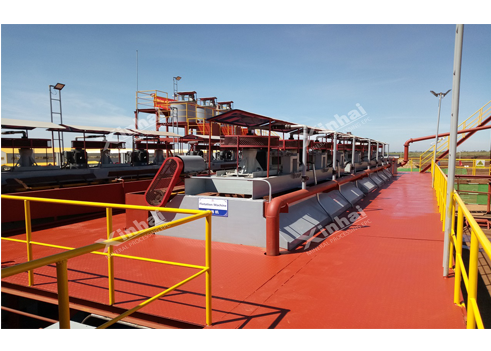

When gravity magnetic separation technology is difficult to deal with ultra-fine chromite, flotation technology becomes a reliable treatment option. In flotation, chemicals are first added to the pulp to make the chromite particles hydrophobic. Bubbles are then introduced, and hydrophobic chromite particles attach to the bubbles and rise to the pulp surface, where they are easily collected.

Chemical beneficiation further improves the processing accuracy. Techniques such as selective leaching can dissolve unwanted gangue minerals, leaving a purer chromite concentrate.

Smelting: smelting ores into alloys

Smelting is a key step in converting ore into alloys. The chrome concentrate obtained after preliminary beneficiation treatment is placed in an electric arc furnace. Under extreme conditions, the chromite gradually melts and the chromium in it is reduced to ferrochrome.

However, the smelting process is not only focused on the production of ferrochrome, but also includes the responsible management of by-products. The tailings produced in the smelting process often contain substances with recycling value. For example, iron-based minerals in tailings can be further processed or used in other industries, both reducing resource waste and improving overall production efficiency.

The beneficiation process of chrome ore is a complex fusion of scientific principle, engineering technology and environmental management concept. From the beginning of gravity separation, the initial screening of the ore through the weight difference, and then the magnetic separation of the mineral using magnetic energy, and then the flotation of ultrafine particles for special treatment, as well as chemical beneficiation to improve the accuracy, until the final smelting stage, each step is closely linked, in the process of converting the original chromite into high value industrial raw materials plays an irreplaceable key role.
