Comprehensive Analysis of CIP in Gold Processing

It is Carbon-in-Pulp (CIP) that marks one of the most important systems in the modern gold mining industry. Plainly defined, it works out an easy method of extracting the gold content from that of the waste material. With Carbon-in-Pulp, activated carbon is added to the slurry leach solution to trap the gold from solutions and suspensions, thus very importantly applying to a wide range of gold ores. Described herein are the basics contrasted with other alternative methods of doing the same principles and aspects of actual plant design and operating practice.

Detailed Process Flow and Stages

The CIP process consists of several important phases, all being designed for optimum recovery and maximum efficiency:

Ore Preparation and Grinding: The first step is crushing and grinding the gold ore to -200 mesh-fine grains. Typically, the goal is to have about 90-95% of the ore particles pass through a 200-mesh screen. This prepares the ground perfectly for leaching. Impurity screening is done with reasons such that impurities like earth particles and wood chip debris are completely sieved out to avoid any interference with the cyanide processes; therefore, there will be no interceptions.

The gold is carefully ground and mixed with a cyanide solution and oxygen inside large, agitation-intensive tanks. The process itself dissolves the gold into the cyanide solution, which is active specifically for the conversion of gold to the soluble gold cyanide complex. Among the factors that will facilitate the leaching reaction and achieve high rates of dissolution include strict maintenance of the cyanide and lime concentrations and pH, proper aeration, and the use of the proper ratio of these solutions.

Carbon Adsorption Stage: Activated carbon is added to the pregnant liquor in a series of tanks where it takes up the gold cyanide complex. The impetus of this step is to reduce gold concentration in the solution; therefore, to succeed in implementing CIP, it is necessary to minimize gold in solution.

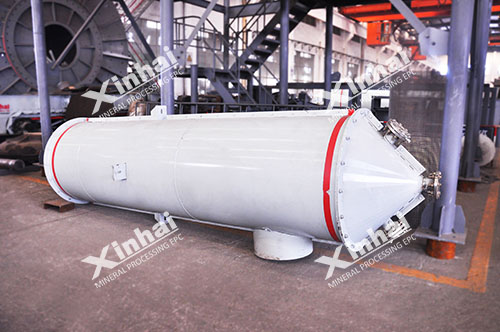

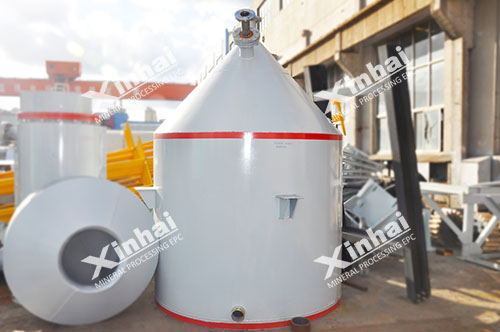

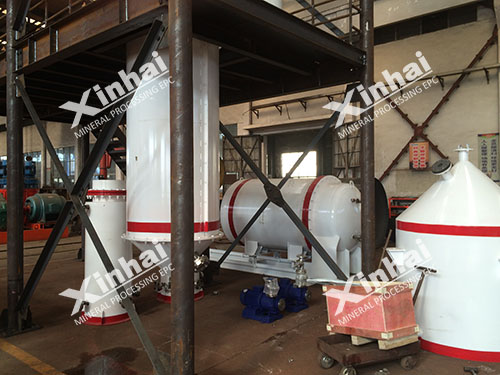

Desorption and Electrowinning: After the activated carbon has absorbed gold, it is transferred to a specialized desorption unit. Here, a hot alkaline solution actively strips the gold from the carbon matrix, resulting in a solution that is rich in gold. This enriched solution is then processed through electrowinning, where gold is deposited onto cathodes—a critical step that enables subsequent refining and ultimately yields pure gold.

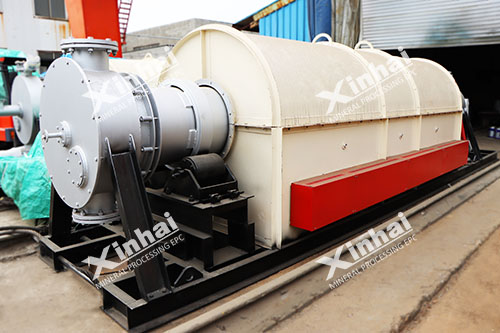

Carbon Regeneration and Tailings Management: Spent carbon is rejuvenated using methods such as acid pickling or thermal activation, which restore its adsorption efficiency for reuse in the process. Meanwhile, tailings containing fine particles and residual chemicals are carefully treated and detoxified. Frequently, cyanide destruction techniques—such as the SO₂/air process or peroxide oxidation—are implemented to comply with environmental regulations and reduce ecological impact.

Comparison with Carbon-in-Leach (CIL)

The CIP process diverges significantly from the CIL process. In CIL, leaching and adsorption take place concurrently within the same tank, while in CIP, gold leaching occurs initially, and only then is carbon introduced. This sequential approach in CIP confers benefits, particularly for oxidized gold ores that have minimal amounts of competing metals such as copper. Research indicates that CIP can attain high recovery rates at reduced costs. Its relatively uncomplicated design and decreased need for inventory contribute to this cost - effectiveness, rendering it a suitable option for particular ore varieties.

For example, the decision between CIP and CIL typically depends on the characteristics of the ore. CIP is often the favored choice for low - grade, oxidized ores. This is demonstrated by case studies from mines such as Merian in Suriname, where recovery rates of over 90% have been reported.

Economic factors also come into play. In certain situations, CIP may present lower capital and operational costs. Moreover, hybrid systems are being increasingly implemented. These systems combine gravity concentration and flotation prior to CIP or CIL. Their adoption aims to enhance recovery and mitigate environmental impact, highlighting the continuous innovation within this domain.

Design and Operational Considerations

To design a prosperous CIP plant, meticulous planning is necessary. This involves accurately determining the plant's capacity, creating a comprehensive flow sheet that covers all process stages, and choosing dependable equipment from well - known manufacturers such as Multotec.

Controlling process variables like reagent dosage, pH, agitation, and mixing is of utmost importance. Continuous monitoring systems for oxygen levels, slurry density, and temperature are put in place to boost the reliability of operations. Performance metrics, with the goal of achieving gold recovery rates above 90%, are optimized through the precise adjustment of variables, maximizing the carbon loading capacities, and implementing strategies to enhance energy and reagent efficiency.

Environmental and Economic Impacts

The cost - effectiveness of CIP is derived from its uncomplicated design. This simplicity results in substantial savings in both capital and operating costs, especially when processing low - grade ores. High recovery rates boost profitability, rendering CIP an appealing choice for numerous mining operations.

From an environmental perspective, proper handling of reagents and waste is of vital importance. Many plants implement cyanide destruction methods to detoxify tailings, thereby minimizing ecological risks. Sustainable practices, like carbon regeneration and the reduction of reagent inventories, promote more environmentally - friendly operations. These efforts are in line with the global trend towards sustainability in the mining industry.

Future Trends and Innovations

As we look towards the future, technological advancements are on the horizon. These include the development of advanced activated carbons that possess greater adsorption capacities and improved reaction kinetics. Additionally, emerging continuous reactors, such as the InLine Leach Reactor (ILR), hold the promise of higher efficiency and a reduced environmental footprint.

Automation and data analytics, featuring real - time monitoring

 and machine learning applications, are being harnessed to enhance the reliability of operations. The integration of CIP with alternative methods is also an area of growth. For example, combining bio - oxidation with CIP for sulfide - rich ores can tap into the recovery potential of complex ores. Currently, ongoing research is concentrated on optimizing the CIP process and seamlessly integrating it with other gold extraction techniques.

Conclusion

The Carbon - in - Pulp (CIP) process continues to be an indispensable technique in gold extraction, providing high recovery rates and cost - efficient operations. Engineers and operators can design and optimize CIP plants to achieve economic and environmental objectives by comprehensively understanding its detailed process flow, making comparisons with the CIL process, and keeping themselves updated on emerging technologies. Remaining informed about these progressions is crucial for maintaining competitiveness in the global gold market. This ensures that the CIP process will retain its long - standing significance in efficient and sustainable gold recovery.
